Adjusting the belt tensioner, poly-V belt to power steering pump and A/C compressor

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

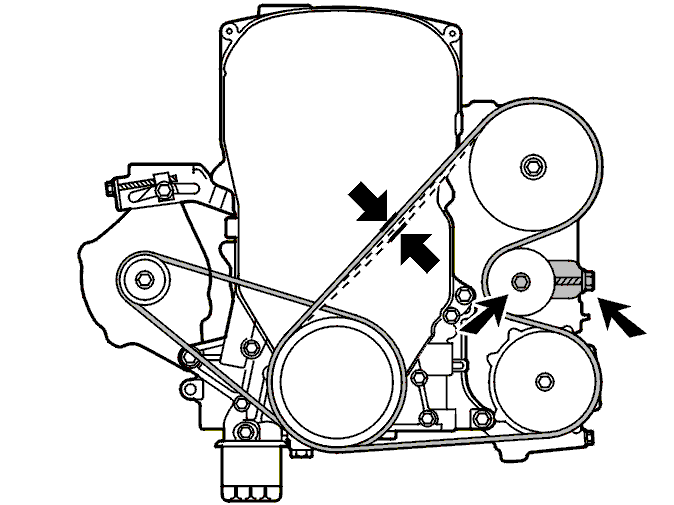

Fig 1: Adjusting Belt Tensioner For Poly-V Belt To Power Steering Pump And A/C Compressor

Courtesy of VOLVO CARS OF NORTH AMERICA.

Apply a force of 22.5 lbf .

Adjustment value:
- new poly-V belt, value 0.28-0.35 in .
- used poly-V belt, value 0.39-0.43 in.
Tighten belt tensioner.
Torque setting: 18.4 ft lb
Check and re-adjust if necessary.
