Removing electric cooling fan
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

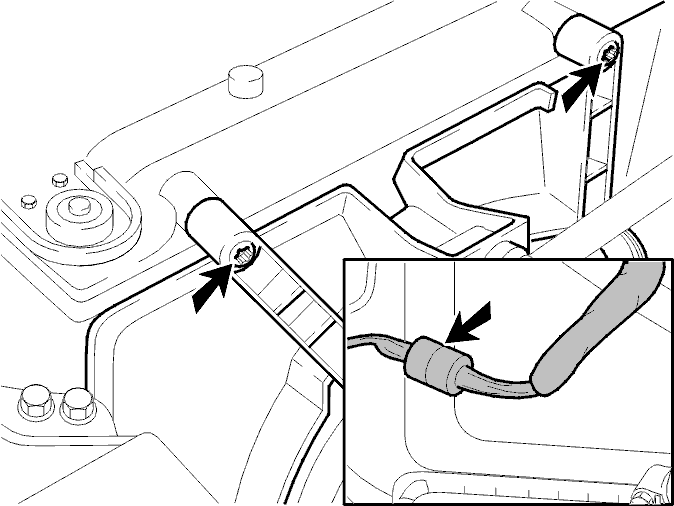

Disconnect the plug connector and move the lead to one side.
Remove the two bolts from the wind tunnel on the radiator.
Remove the wind tunnel and the fan.
NOTE:
Protect the radiator using a piece of hardboard, triplex or similar etc. If necessary, use shield 9995474 .
