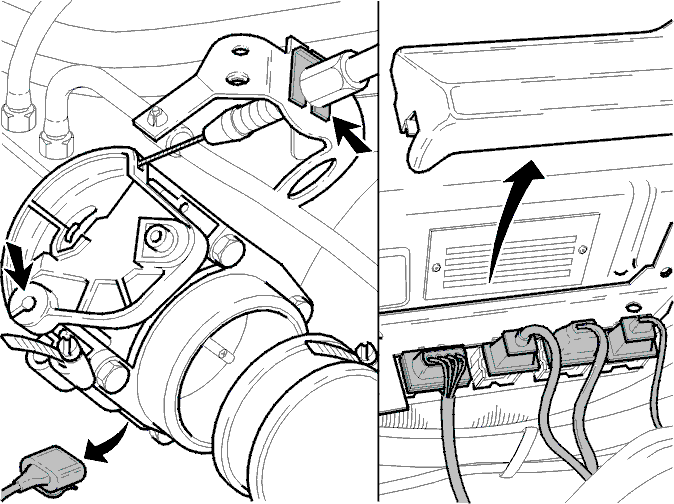

Remove throttle cable and connectors
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
Remove:
- The inner cable at full throttle
- The throttle position (TP) sensor
- The idle air control (IAC) valve
- The H02S
- The knock sensor (KS).
- The clip and take the outer cable out
- The throttle position (TP) sensor
- The idle air control (IAC) valve
- The H02S
- The knock sensor (KS).
- The relay bracket cover and the connectors:
- The throttle position (TP) sensor
- The idle air control (IAC) valve
- The H02S
- The knock sensor (KS).
- The brake servo hose from the engine.
