MT: Remove left drive shaft
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
- Drain the transmission oil:
- Remove the cover plate
- Drain the oil and fit the drain plug using a new gasket. Torque setting 22 Nm .

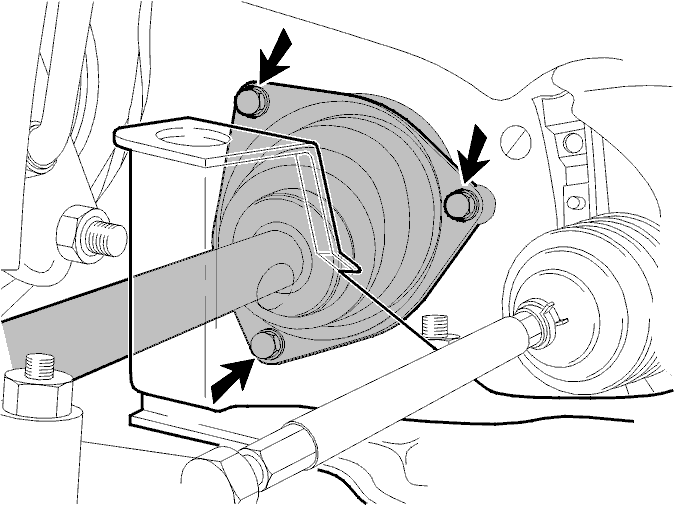

- Remove the three bolts, take the LH driveshaft out and tie it up on the stabilizer rod
- Place the protecting bag over the tripod drive shaft.
