MT: Remove clutch cylinder
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of VOLVO CARS OF NORTH AMERICA.

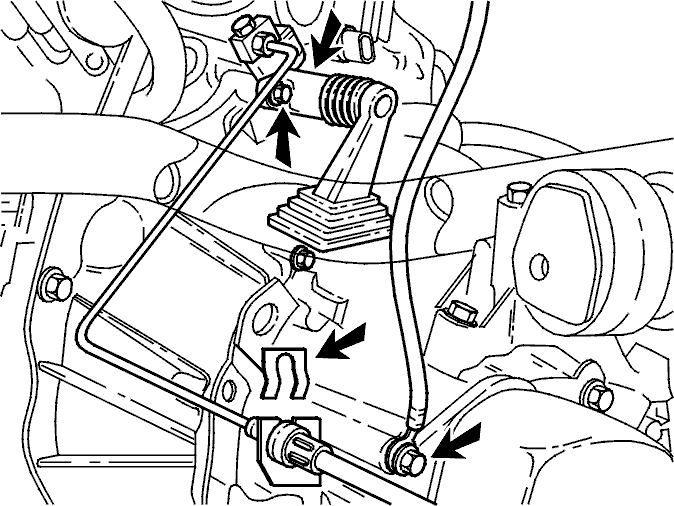

Remove:
- The locking clip from the pipe to the clutch cylinder
- The hydraulic clutch cylinder.
NOTE:
Block the piston with a tie-wrap to avoid leakage.
- The negative lead from the battery to the transmission.
