MT: Disconnect (mechanical) speedometer cable

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

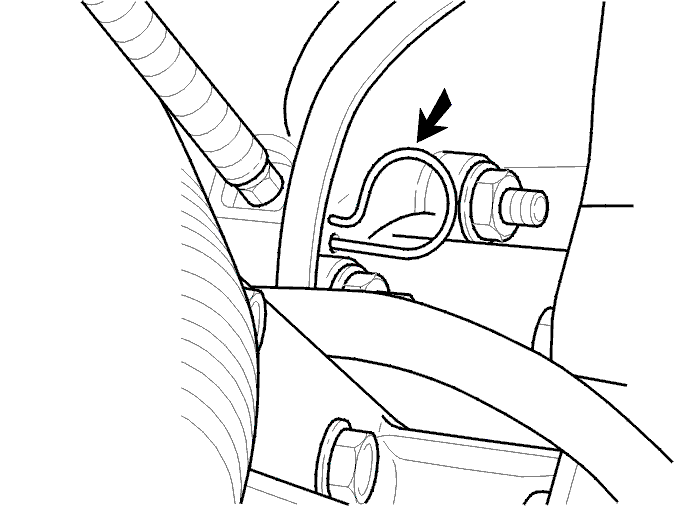

Fig 1: Speedometer Cable (MT)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Pull out the spring
Pull out the speedometer cable and plug the hole.

Undo the connector from the HO2S and feed the cable downwards.

AC: Remove the AC pipe support above the engine mounting bolster.
