AT: Remove left and right hand drive shafts
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the rear bracket from the engine

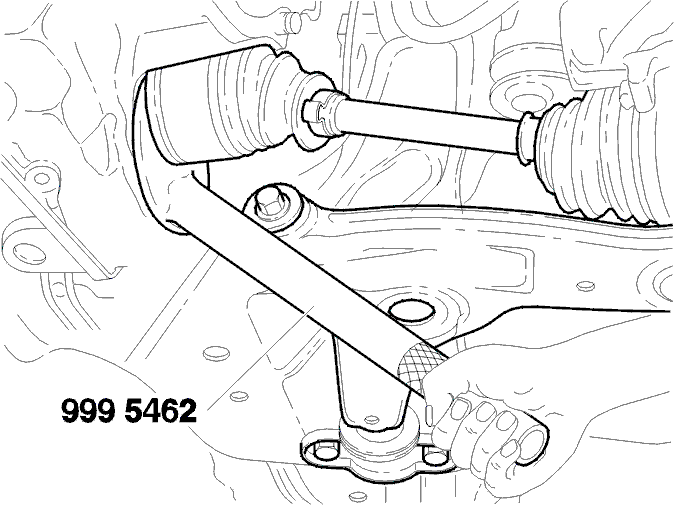

- Undo the drive shaft from the transmission, use special tool 9995462
- Remove the knuckle out of the shock absorber
- Remove the drive shaft out the transmission
- Remove the lower bolt and move the drive shaft sidewards
- Install the special tool 9995488 in the transmission
- Place the knuckle in the lower shock-absorber mounting-hole
- Tie the drive shaft to the cross member.
