Raise the engine/transmission to the horizontal position.

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

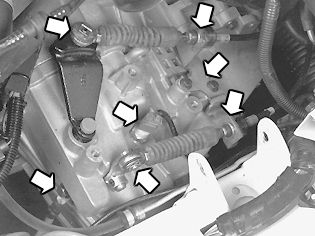

Fig 1: Identifying Shift Cables, Levers, And Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

the screws of transmission/engine and starter motor/transmission. Tighten the screws to 50 Nm .
the shift cables to the mountings and levers. Lubricate the lever pins with a little wheel bearing grease, part no. 1161241-3.
NOTE:
Connect the yellow marked cable to the outer hole in the bracket and the outer lever on the transmission.

Attach the connector to the reversing light switch..
