Install the transmission
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
Adjust for height and angle using the mobile jack and the transmission fixture.
Align the transmission against the engine.
Ensure that the transmission goes straight in, in relation to the engine, and that no deviation occurs in the clutch driven plate center.

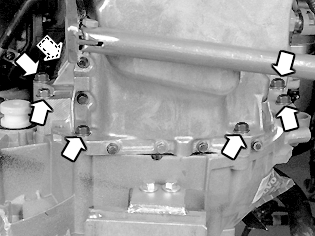

Fit the 7 screws. First tighten hand-tight in an alternating pattern. Then tighten in an alternating pattern to 50 Nm .
CAUTION:
While tightening, check that the guide sleeves go into their guide holes in the transmission.
Remove the fixture and the mobile jack from the transmission.
