Install the mounting on the transmission

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

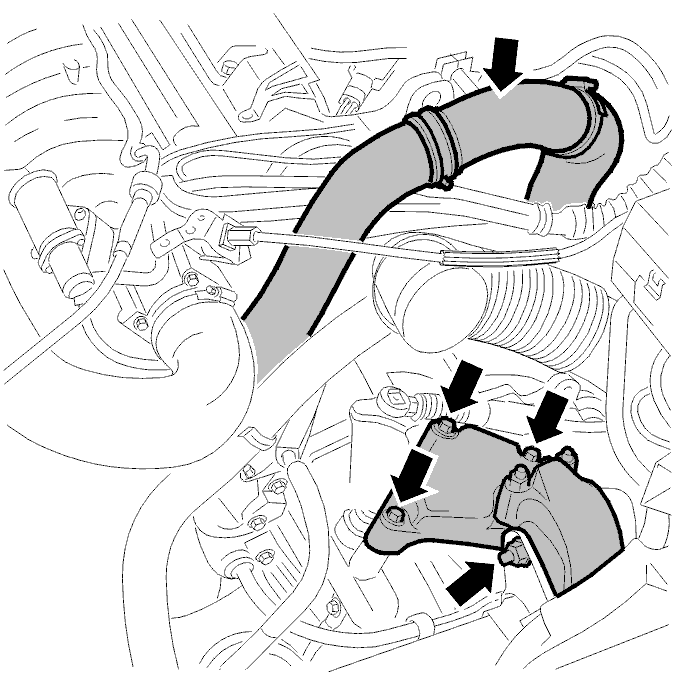

Fig 1: Identifying Mounting, Screws, Charge Air Pipe, And Turbocharger Hose

Courtesy of VOLVO CARS OF NORTH AMERICA.

Tighten the three screws. Tighten to 50 Nm .

Fit the mounting to the body mounting. Fit the screw and a new lock nut.

Tighten the transmission mounting in the body to 98 Nm .

Remove the lifting hook and lifting brace.

Attach the charge air pipe to the turbocharger hose.

Do not tighten any clamps yet.
