Fit the left-hand drive shaft
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

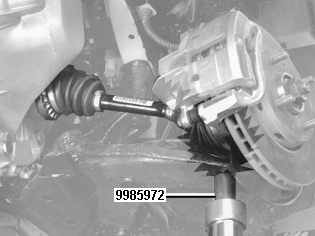

Position the mobile jack 9985972 as a support under the control arm.
Install the drive shaft in the differential. Press the drive shaft in properly so that it engages in the lock ring.
Fit the wheel spindle to the spring strut. Install the screws and new lock nut finger-tight.
CAUTION:
Make sure that the membrane and seals are not damaged.
