Attach and tighten the hose clip and retaining clamp to the charge air pipe.
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

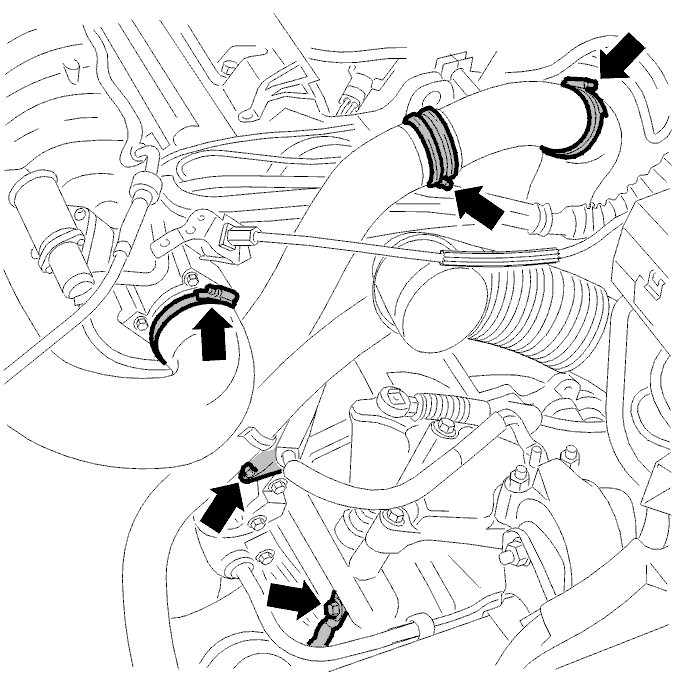

Fig 1: Identifying Charge Air Pipe, Intake Manifold Hose, Clamps, Battery Cable Mounting, And Ground Cable For Transmission
Install:
- the hose to the intake manifold
- the battery cable to the mounting on the transmission
- the ground cable for the transmission. Tighten to 40 Nm
