Drive shaft right-hand side, installing

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

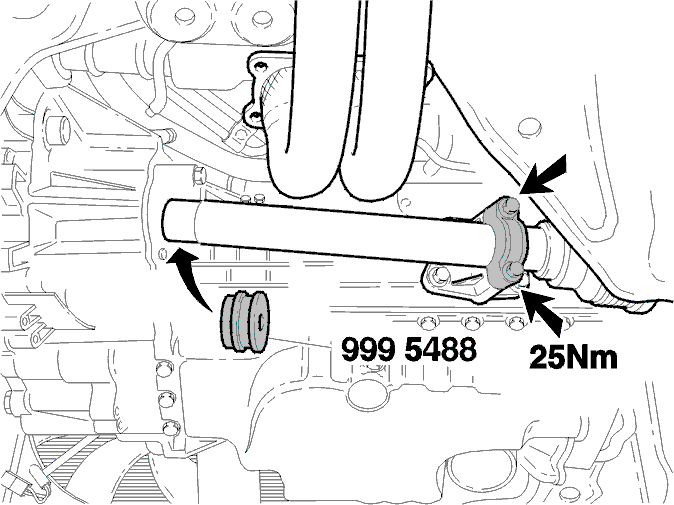

Fig 1: Drive Shaft Support Bearing Cap With Torque Specifications

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the special tool.

Install the drive shaft in the differential and the support bearing in the bearing housing.

Install the drive shaft support bearing cap. Tightening torque 25 Nm .

Fit the wheel spindle to the spring strut. Install the screws and new lock nut finger-tight.

CAUTION:

Make sure the sealing ring in the transmission and the drive shaft's rubber membrane are not damaged. Replace as necessary.
