Attach the connecting pipe to the branching and bracket

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

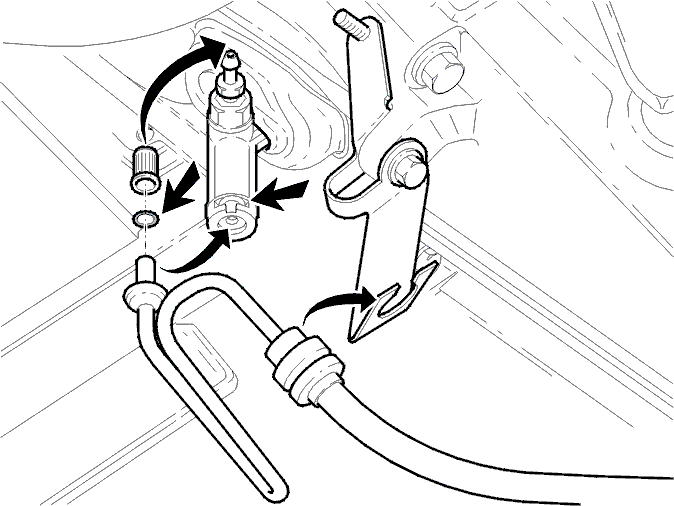

Fig 1: Identifying Connecting Pipe, Branching, And Bracket

Courtesy of VOLVO CARS OF NORTH AMERICA.

Replace the O-ring.
Insert the pipe in the connection.
Fit the locking pin.
Position the hose in the bracket.

Bleed the clutch.

NOTE:

Use only Volvo genuine brake fluid (Dot 4+).
