Air intake hose

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

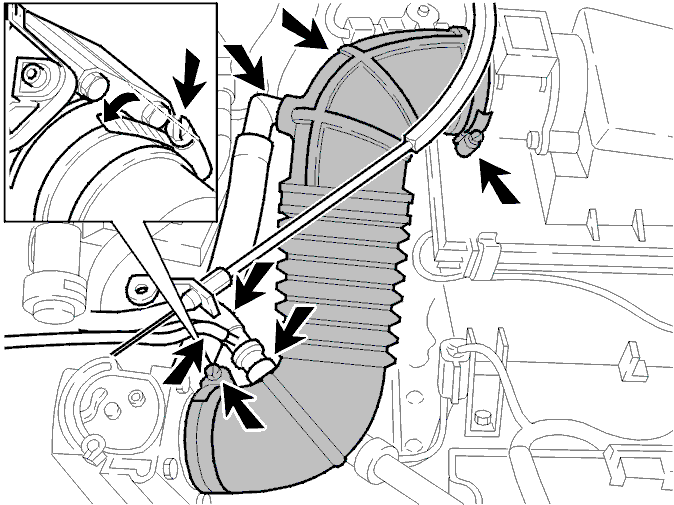

Fig 1: Identifying Air Intake Hose And Hose Clamps

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the air intake hose in position.
Connect the PCV hose and vacuum hose to the lower connections in the front edge.
Connect the PCV hose and vacuum hose to the upper connections.
Tighten the hose clips.
Install the throttle body cover.

Install:

battery, see Installing the battery .

Check the function.
