Removing brake components:
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
Raise the car.

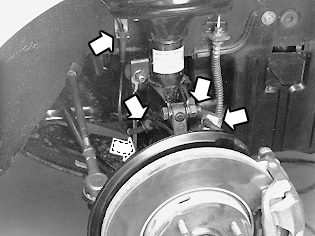

Remove:
- the front wheel
- ABS line from the mounting in the spring strut and wheel arch
- the brake hose from the mounting in the spring strut
- the nuts for the spring strut and stub axle screws. Leave the screws in place
- the track rod. Use puller 9995259 .
