Installing the seal
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of VOLVO CARS OF NORTH AMERICA.
Lubricate the new seal lip. Use grease P/N 1161241-3.

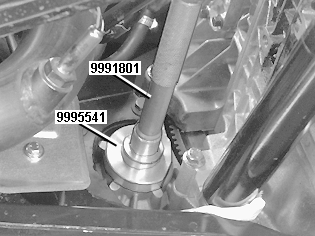

Use drift
9995541
with shaft
9991801
. Turn the drift with the M56 end against the seal.
Tap in the seal until the drift is against the transmission.
