Installing the drive shaft

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

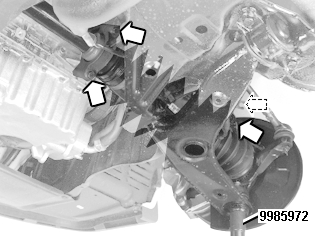

Fig 1: Locating Drive Shaft Screws And Lock Nuts

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

the drive shaft in the differential housing
the cover for the drive shaft pilot bearing. Tighten to: 25 Nm.

Locate stub axle to spring strut. Install screws and new lock nuts loosely.

CAUTION:

Ensure that the sealing ring in the transmission and the drive shaft boots are not damaged.

Remove the mobile jack.
