Checking the oil level

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

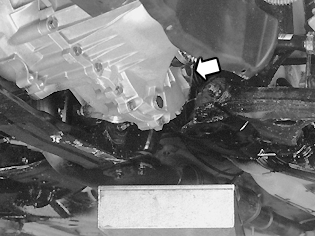

Fig 1: Oil Level Plug
GLL109206Courtesy of VOLVO CARS OF NORTH AMERICA.

Check the oil level in the transmission, top up if necessary.

Tighten the level plug. Tighten to 35 Nm  .
