Drive shaft, installing

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

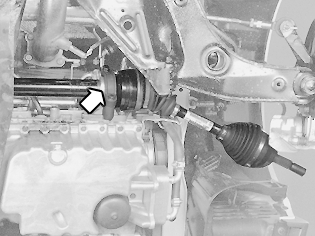

Fig 1: Identifying Support Bearing Cap

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the seal plug.
NOTE:
Do not damage the sealing ring in the transmission or the boot on the drive shaft.
Install new bearing cap (steel) for the drive shaft support bearing. Tightening torque: 25 Nm.
Install the drive shaft to the stub axle.

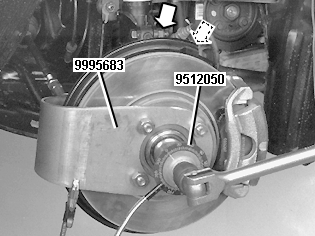

Fig 2: Identifying Drive Shaft Nut Installation

Courtesy of VOLVO CARS OF NORTH AMERICA.

Position the mobile jack 9985972 as a support under the control arm.
Align the drive shaft in the hub
Lubricate the shaft splines using grease, P/N 1161246-2.

Install:

new screws to the stub axle. Use new lock nuts. Tightening torque: 90 Nm.
counterhold 9995683
the drive shaft nut. Lubricate the nut before installation. Tighten 120 Nm + 60° angle . Use protractor 9512050 . Remove the counterhold.
