Removing The Muffler

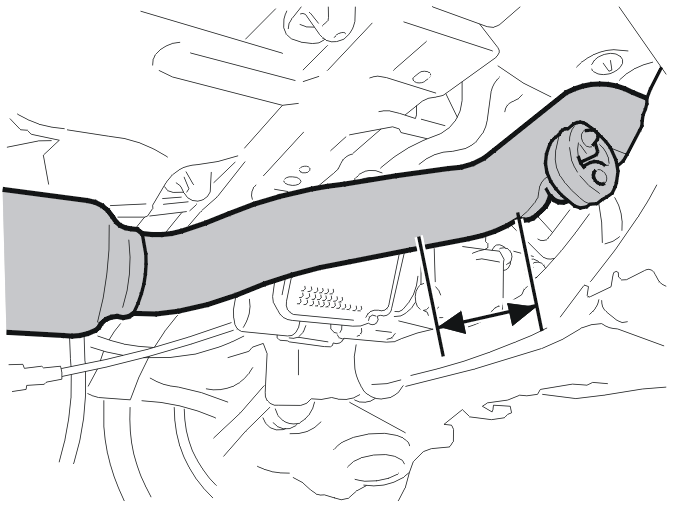

Fig 1: Identifying 125mm From Rubber Mounting

Courtesy of VOLVO CARS OF NORTH AMERICA.

Only applies at the first change:

Cut between the front and rear exhaust pipe sections. Cut 125 mm from the rubber mounting towards the front muffler.

Remove:

• the three rubber mountings from the muffler
• the muffler.

Applies to the second or later changes:

Remove:

• the 2 x M10 nuts for the clamp between the front and rear muffler
• the three rear rubber mountings from the muffler
• the muffler.

HINT: Tap carefully around the joint to crack any rust and soot deposits in the joint. Use a hammer.

Remove the muffler.
