Parking Brake, Adjusting (2008, 2009, 2010)

NOTE:

Removal steps in this procedure may contain installation details.

Remove cup holder floor console. see FLOOR CONSOLE CUP HOLDER (2004-2007) , or FLOOR CONSOLE CUP HOLDER (2008-2011)

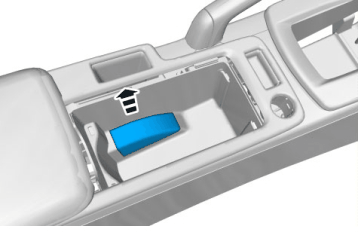

Fig 1: Removing Cover
GLL165940Courtesy of VOLVO CARS OF NORTH AMERICA.

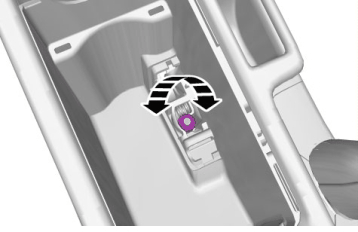

Fig 2: Removing/Installing Console Fastener
GLL165941Courtesy of VOLVO CARS OF NORTH AMERICA.
NOTE:

Make sure that the road wheels freely rotate after the adjustment.

To install, reverse the removal procedure.
