Exposing Adjusting Nut

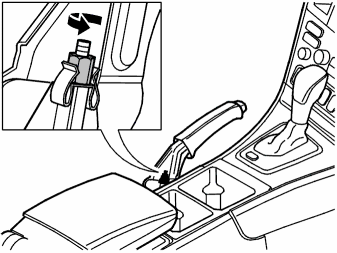

Fig 1: Loosening Adjusting Nut
GLL106659Courtesy of VOLVO CARS OF NORTH AMERICA.

Loosen the lever's gaiter so that the adjusting nut is exposed.

Loosen the adjusting nut until the adjusting screw's end is even with the nut and apply the parking brake by pulling hard on the lever five times.

Make sure that the parking brake's lever is in resting position.
