Preparatory Work

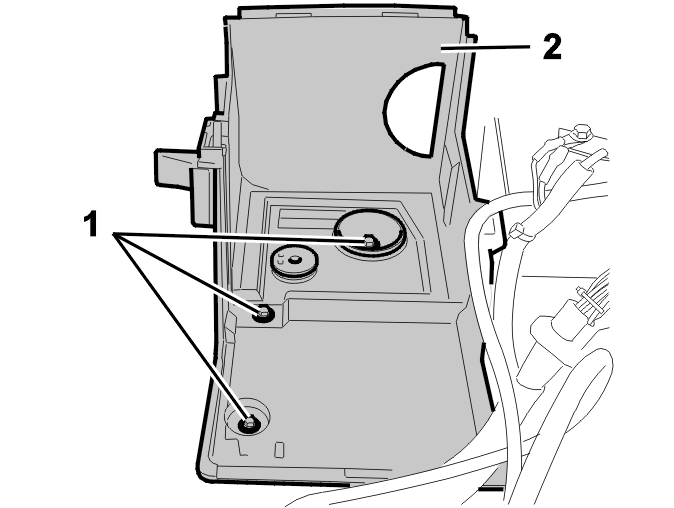

Fig 1: Removing/Installing Battery Box

Courtesy of VOLVO CARS OF NORTH AMERICA.

Ignition off.

Remove:

• the battery. See: BATTERY
• the 3 screws
• the temperature sensor connector from the battery box
• the battery box.
