Installing The Splash Guard

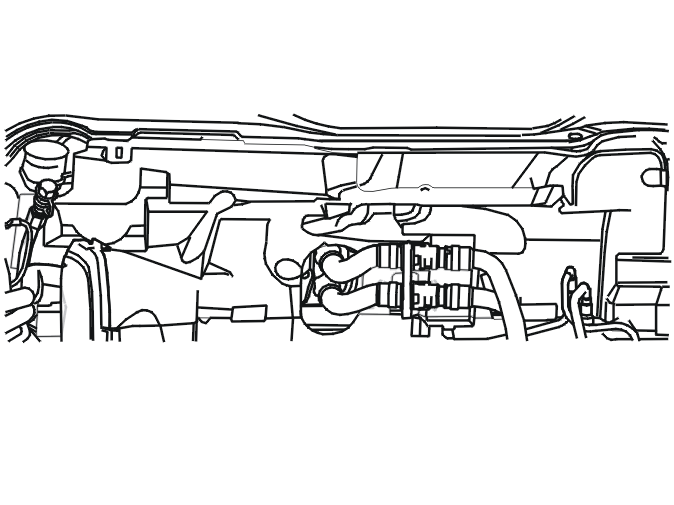

Fig 1: Identifying Splash Guard

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

• the protective cover.
• the plastic nut, x 1
• the hoses into the clip.

Fig 2: Removing/Installing Battery Box

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

• the battery box
• the temperature sensor connector from the battery box
• the 3 screws
• the battery as shown: BATTERY .
