Removing Splash Guards

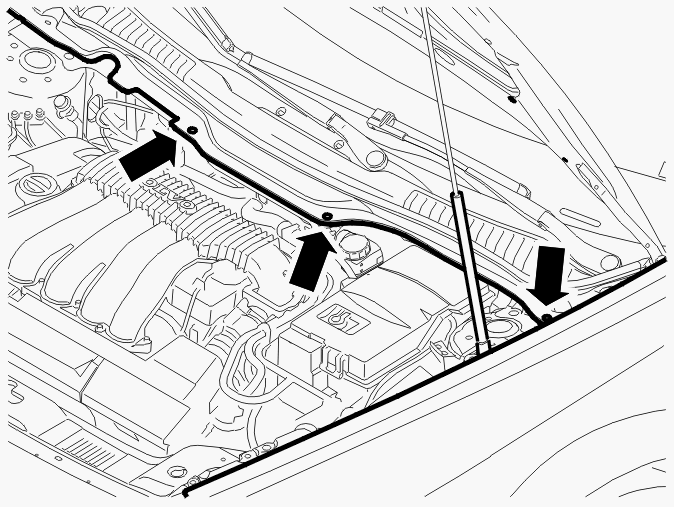

Fig 1: Identifying Cowl And Clips

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the 3 clips holding the cowl.

Fig 2: Identifying Clips And Protective Cover

Courtesy of VOLVO CARS OF NORTH AMERICA.

Carefully lift up the cowl. Remove the 2 clips for the protective cover.

Remove the protective cover over the brake fluid reservoir.

Fig 3: Identifying Plastic Nut And Upper Protective Cover For Firewall

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• the plastic nut
• the upper protective cover for the firewall
