Apply To Cars With External Amplifier

• Grasp the upper edge of the right-hand side cushion. Pull the side cushion forward so that the clip on the reverse releases.
• Slide the side cushion up. Remove the side cushion.
• Repeat the operation on the other side.

• Pull off the rubber strip at the rear of the opening for the right-hand rear door.
• Carefully pry off the lower panel on the C-post on the right-hand side. Carefully pry at the top edge. Use a plastic weatherstrip tool.
• Pull the panel on the C-post so that the two upper clips release. Then continue down until the last two clips release. Remove the panel on the C-post.

• Pull the top edge of the sill trim panel in the right-hand rear door inwards until the clips on the inside release. Then continue down and pull the panel upwards until the remaining two clips on the underside release.

• Pull off the rubber moldings at the rear edge of the right-hand front door and at the front edge of the right-hand rear door. This releases the lower panel on the B-pillar.
• Pull the bottom edge of the lower panel on the B-pillar until the two bottom clips release.

• Fold the rear seat cushions and backrest forwards.

• Use a weatherstrip tool and pry up one corner of the sill trim panel so that the two clips on the short side release.
• Pull up the sill trim panel so the remaining six clips release. Remove the panel.
• Detach the rubber strip where it covers the left and right-hand side panel in the tailgate opening.

• Remove the screw.
• Pull the panel upwards so that the four clips on the inside release. Remove the panel.
• This must be carried out on the left-hand side on right-hand drive vehicles.

• Fold out the load securing eyelets.
• Insert a scriber with an angled tip into the holes in the top of the covers (1). Turn the scriber so that the tip engages the reverse of the cover. Pull the covers off.
• Remove the screws in the load securing eyelets.
• Remove the screw (2).
• Pull off the side panel at the top so that the two clips at the rear/bottom of the side window and the clip at the bottom of the D-post release.
• Disconnect the connector for the 12 V socket, if present.
• This is carried out on the left-hand side on right-hand drive vehicles.

Applies to S40 (04-)

• Remove the cargo compartment carpet.

• Remove the upper floor support on the left and right-hand sides if applicable.

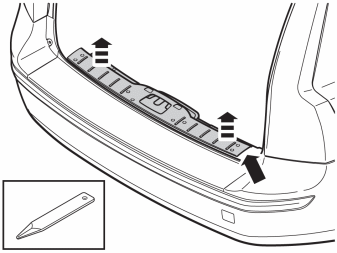

• Unscrew the two external clips at the front edge/bottom edge of the sill trim panel on the tailgate.
• Use a weatherstrip tool and pry up one corner of the sill trim panel so that the two clips in that end release.
• Pull up the sill trim panel at the other end so that the remaining two clips release. Remove the sill trim panel.

• Remove the four clips (1), holding the side panel in the bodywork.
• Unhook the front edge of the parcel shelf panel at the mounting (2). Pull the side panel away from the parcel shelf panel and the panel on the C-post.

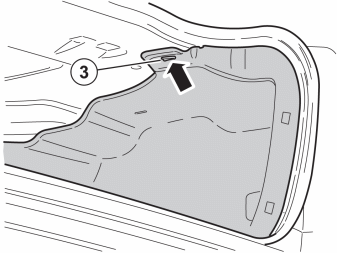

• Unhook the side panel from the mounting (3), on the underneath of the parcel shelf.
• Disconnect the connector for the 12 V socket, if present.
• Unhook the side panel from the load securing eyelets (4). Remove the side panel.
• This is carried out on the left-hand side on right-hand drive vehicles.

Applies to the S40

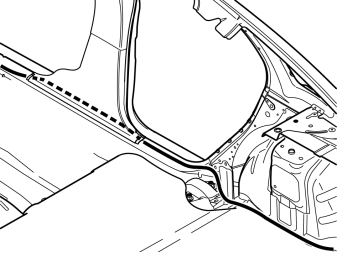

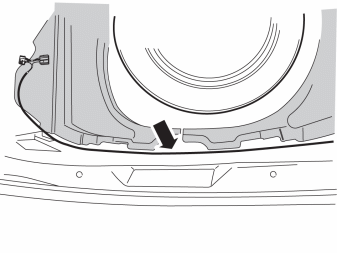

• Route the cable (B) inside the floor carpets, the lower B-post panel and the insulation panels, back to the rear edge of the right-hand rear wheel arch. Route the cable along the existing cable harnesses in the cargo compartment.
  NOTE: Ensure that the cable is positioned so that there is no risk of it catching or rubbing.

Applies to the S40 (not right-hand drive)

• Continue routing the cable harness to the amplifier.
• Position the cable harness at the existing cable harness to the side and at the rear edge of the cargo compartment, all the way from the right-hand wheel arch to the amplifier.
• Take a short tie strap from the kit and secure the cable harness at the existing cable harness.

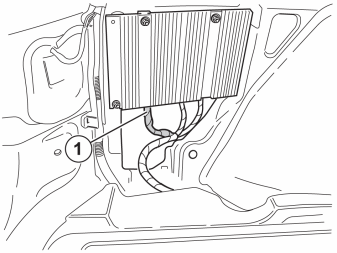

• Disconnect the rear connector (1) on the amplifier.

• Remove cable harness (C) from the kit.

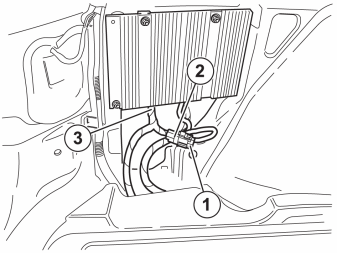

• Connect the cable harness to the amplifier as follows: Connector (1) which is disconnected from the amplifier is connected to the female connector (2) on the cable harness. Connector (3) on the cable harness is connected to the amplifier.
• Tape one section of the cut piece of foam tape around connectors (1) and (2).

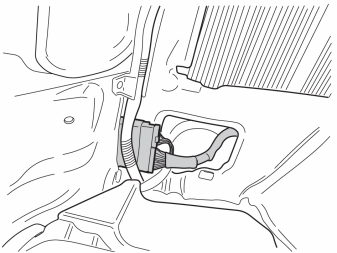

• Secure the excess cable using one of the cut up parts of foam tape and two short tie straps, on the existing cable harness of the vehicle

Applies to the S40

• Take the relay and 2 thick pieces of foam tape from the kit.
• Connect the connector from cable harness C and the routed cable harness connector to the relay.
• Fit 2 pieces of tape around the relay.

• Place the relay behind the existing cable harness.

• Reinstall the connectors to the rear section of the glove box. Note the color marking on the cable for the right-hand connector.
