Applies To Right-Hand Drive Cars

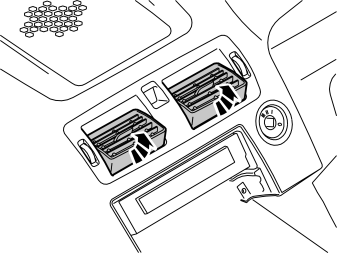

• Angle up both air vents.

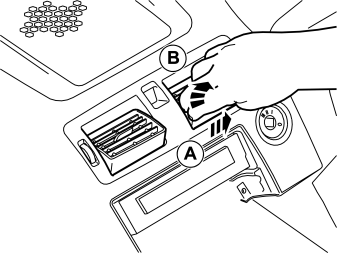

• Grip the air vent, press it out and pull it up.
• Do the equivalent to the other air vent.

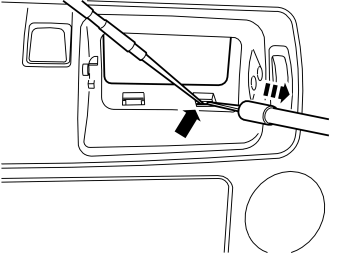

• Insert a scriber and push up one of the catches in the lower edge of the air vents' housing.
• Insert the tool part no. 9995919 in the space which is opened and pull out until the catch releases.
• Repeat this until all catches in the lower edge have released.

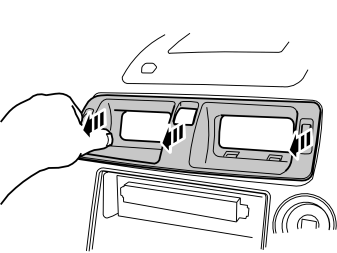

• Grip the ends of the housing and pull out until all catches on both the top and bottom are fully free from the inside of the dashboard. If necessary, use a weatherstrip tool to prize out the ends of the housing.
  NOTE: Do not damage the dashboard.
  NOTE: Pull alternately on the right and left-hand sides, otherwise the edge of the housing will crack where it enters the air ducts on the inside. The housing is secured firmly so force will be required to release it.

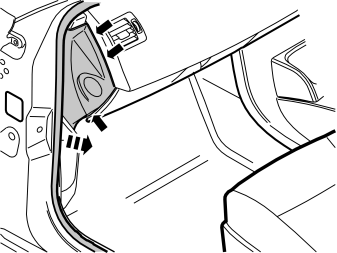

• Remove the panel on the left-hand end of the dashboard. Carefully prize off the panel until the three clips release. Use a weatherstrip tool.
  NOTE: Do not damage the dashboard.

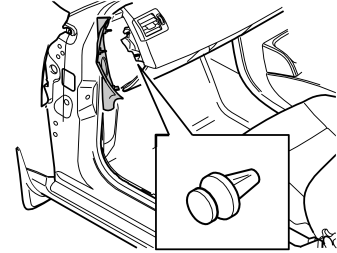

• Remove the clip holding the nozzle for the air duct on the left-hand side.

• Open the glove compartment.

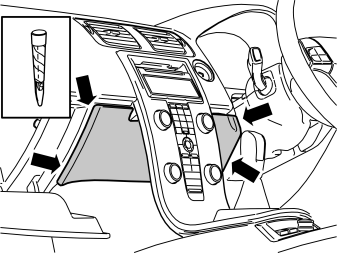

• Carefully pry off the panel inside the center console with a weatherstrip tool. It is fitted with two clips on each short side.
• Pull the panel away downwards.

• Carefully press in the air quality sensor so it releases from its holder on the back side of the glove compartment.

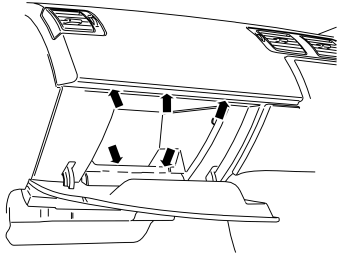

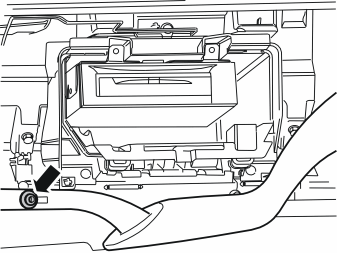

• Remove the five screws in the opening to the glove compartment.

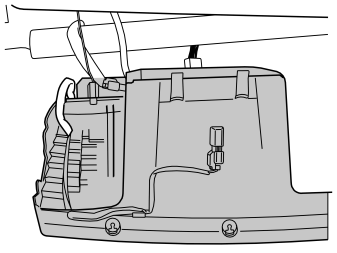

• Remove the front section of the glove compartment by pulling backwards until the two clips at the upper edge release. Disconnect the two connectors from the top.

• Remove the screw for the vent on the left-hand side. Pull off the vent to the left. Place to one side.

• Remove the four screws for the inner section of the glove compartment. Pull out. Place it to one side. If a DVD reader is installed, detach the connectors on the back side.

• Fit the support legs of the bracket from the kit into the socket for the surround of the combined instrument panel and in the right-hand air vent.

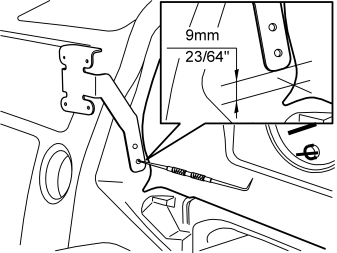

• Position the right-hand support leg of the bracket as shown. The front edge of the support leg must be parallel with the edge in the cut-out in the dashboard and the measurement to the bottom edge of the support leg must be taken from the center of the radius.
• Mark out the holes to be drilled for the mounting.

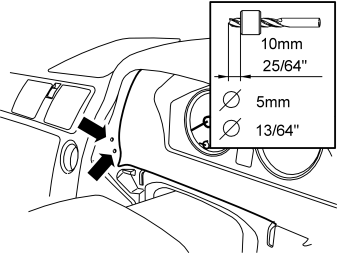

• Drill out the holes using a 5 mm (13/64')  diameter drill bit. Use a 10 mm (25/64')  drill stop to prevent damaging the components on the inside.
• Remove any shavings.

• Secure the right-hand support leg of the bracket to the dashboard using two screws and the mounting plate (located on the inside) from the kit.

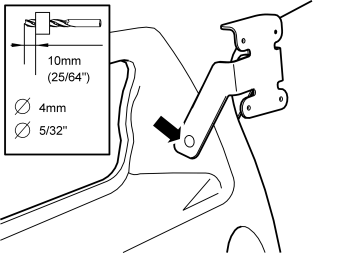

• Drill out the hole for the left-hand support leg with a 4 mm (5/32')  diameter bit.

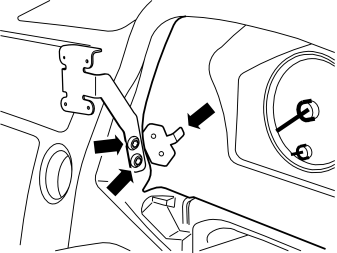

• Take a screw from the kit and secure the left-hand support leg.

• Take the mounting plate and short antenna cable with blue connector from the kit.
• Press in the antenna cable's blue connector on the rear of the mounting plate.

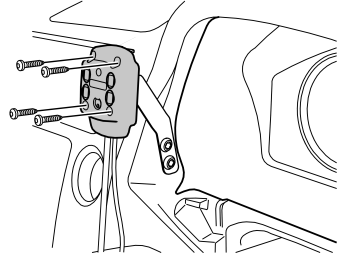

• Take the mounting plate and four screws (l = 16 mm)  from the kit. Secure the mounting plate in the installed bracket.
