Navigation System, Turn By Turn: Preparations

Fig 1: Disconnect Battery Negative Lead

Courtesy of VOLVO CARS OF NORTH AMERICA.

Turn the ignition key to position 0.
Disconnect the battery negative lead.
NOTE: Wait at least five minutes before disconnecting the connectors or removing other electrical equipment.

Fig 2: Identifying Screws From Surround For Combined Instrument Panel

Courtesy of VOLVO CARS OF NORTH AMERICA.

Position the steering wheel in its lowest and rearmost position.
Remove the two screws from the surround for the combined instrument panel.

Fig 3: Identifying Surround Starting

Courtesy of VOLVO CARS OF NORTH AMERICA.

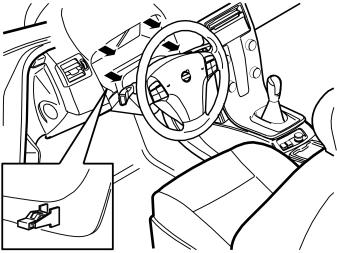

Pull off the surround starting at the lower edge and then at the upper edge. The surround is secured by a clip at each side of the lower edge. Place the surround to one side.

Fig 4: Identifying Center Console Panel

Courtesy of VOLVO CARS OF NORTH AMERICA.

Carefully prize off the panel at the rear edge of the centre console. Use a weatherstrip tool. The panel is secured by two clips on each of the short sides.
Move the panel to the side to access the two screws underneath.
Remove the two screws.

Fig 5: Identifying Rear Center Console Panel

Courtesy of VOLVO CARS OF NORTH AMERICA.

Open the glove compartment.
Carefully prize off the panel inside the centre console. Use a plastic weatherstrip tool. The panel is secured by two clips on each of the short sides.
Pull the panel away downwards.

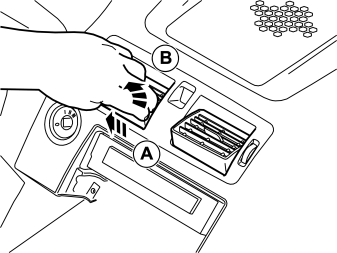

Fig 6: Identifying Display And Media Player Surround

Courtesy of VOLVO CARS OF NORTH AMERICA.

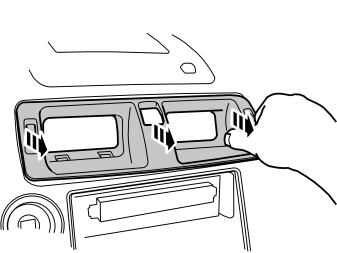

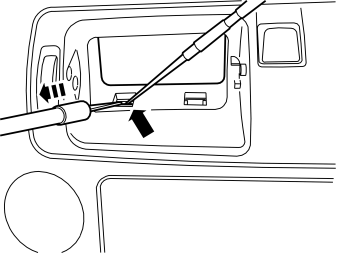

Detach the surround around the display and the media player: Press in the catch at the edge of the media player cover. Use a small screwdriver. Carefully prize off the surround at the corner. Use a plastic weatherstrip tool.
NOTE: Do not damage the panel and dashboard.

Repeat the operation on the other side.

HINT: If the other side does not detach, press the detached side into position again and repeat the procedure, beginning from the other side.
Fold the surround backwards. Remove by pulling upwards.

Fig 7: Identifying Display Module

Courtesy of VOLVO CARS OF NORTH AMERICA.

Press out the display module (1) from the reverse of the centre console. Use both hands and press straight back.
Disconnect the two connectors. Put the display to one side.

Fig 8: Identifying Dashboard Center Console Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the two screws holding the centre console to the dashboard.
Remove the connector on the reverse of the dashboard environment panel.
Remove the centre console from the dashboard and tunnel console.

Fig 9: Identifying Media Player Clips

Courtesy of VOLVO CARS OF NORTH AMERICA.

Only applies to the S40 CH 80923- and V50 CH 78749-

Remove the two clips securing the cables to the media player by first pressing them to the sides and then pulling them away downwards.

NOTE: Be careful with the optic cables so that they are not bent or stretched.

Fig 10: Identifying Media Player Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the two screws from the bottom of the media player.
Pull out the media player. Disconnect the connector on the reverse side.
NOTE: Note how the wiring is packed on the reverse side. The fiber optic cables are easily damaged and must not be bent to a radius less than 25 mm (1 3/4").

Fig 11: Identifying Air Vents

Courtesy of VOLVO CARS OF NORTH AMERICA.

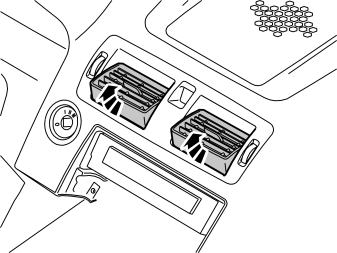

Angle up both air vents.

Fig 12: Gripping Air Vent

Courtesy of VOLVO CARS OF NORTH AMERICA.

Grip the air vent, press it out and pull it up.
Do the equivalent to the other air vent.

Fig 13: Identifying Air Vent Housing Catches

Courtesy of VOLVO CARS OF NORTH AMERICA.

Insert a scriber and push up one of the catches in the lower edge of the air vents' housing.
Insert the tool P/N 9995919 in the space which is opened and pull out until the catch releases.
Repeat this until all catches in the lower edge have released.

Fig 14: Identifying Housing Pulled Out

Courtesy of VOLVO CARS OF NORTH AMERICA.

Grip the ends of the housing and pull out until all catches on both the top and bottom are fully free from the inside of the dashboard. If necessary, use a weatherstrip tool to prize out the ends of the housing.
NOTE: Do not damage the dashboard.

NOTE: Pull alternately on the right and left-hand sides, otherwise the edge of the housing will crack where it enters the air ducts on the inside. The housing is secured firmly so force will be required to release it.

Fig 15: Identifying Panel On Right-Hand End Of Dashboard

Courtesy of VOLVO CARS OF NORTH AMERICA.

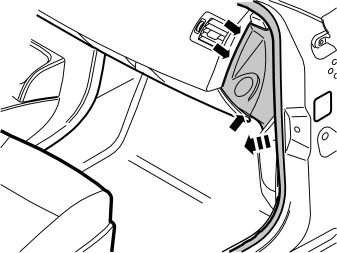

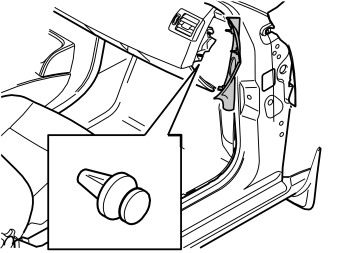

Remove the panel on the right-hand end of the dashboard. Carefully prize off the panel until the three clips release. Use a weatherstrip tool.
NOTE: Do not damage the dashboard.

Fig 16: Identifying Clip Holding Vent From Glove Compartment

Courtesy of VOLVO CARS OF NORTH AMERICA.

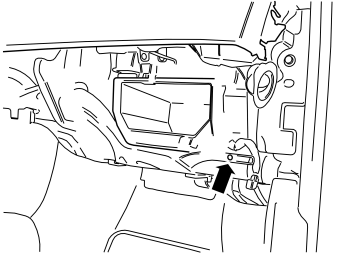

Remove the clip which holds the vent to the air duct.

Fig 17: Locating Glovebox Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the rubber mat from the glove compartment.
Remove the five screws in the opening to the glove compartment.

Fig 18: Identifying Front Section Of Glove Compartment

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the front section of the glove compartment by pulling backwards until the two clips at the upper edge release. Disconnect the two connectors from the top.

Fig 19: Identifying Vent Screw

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the screw for the vent on the right-hand side. Pull off the vent to the right. Place to one side.

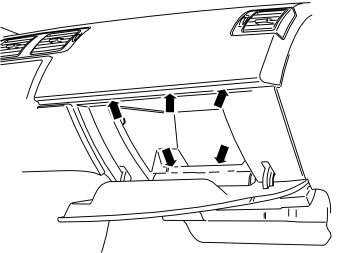

Fig 20: Identifying Screws To Inner Section Of Glove Compartment

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the four screws to the inner section of the glove compartment and pull it out. Place it to one side.

Fig 21: Identifying Phone Module (PHM) Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Applies to cars with integrated telephone and where the traffic message (TMC) control module shall be installed.

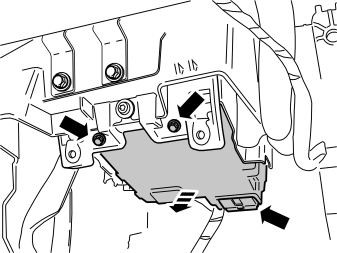

Remove the screws in the phone module (PHM). Remove the control module, detach the connector on the rear side and place it to one side.
