Connecting The Media Player

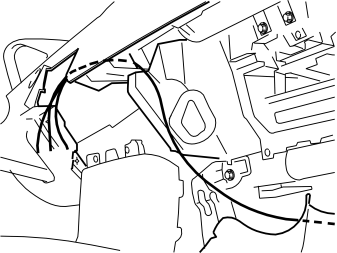

Fig 1: Routing Cable Harness With Three Cables

Courtesy of VOLVO CARS OF NORTH AMERICA.

Applies to the S40 CH -80922

• Route the cable harness with the three cables, red (R), violet (VO), and brown (BN) (where the connectors were cut off) down in front of the central electronic module (CEM). Route the cable harness inside the carpet to the left, along the right-hand side of the centre console, up along this and out where the media player was fitted.
• Bind in the loose connectors and fuse holder with foam tape from the kit to avoid rattling. The long foamed section of the cable harness with the two grey connectors shall later be routed under the floor carpet out toward the right-hand front door, to be later routed backward to the amplifier in the cargo compartment.
