HANDSFREE, BLUETOOTH (2005-07): Connecting

• Fold the carpet to the right of the center console.

Applies to cars with internal amplifier

• Take the relay and two thick pieces of foam tape from the kit.
• Connect the connectors from cable harness A  to the relay.
• Tape the foam tape pieces around the relay.

Applies to cars with internal amplifier

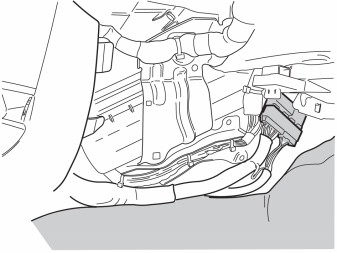

• Place the relay between the carpet and the climate control unit as shown.

• Connect the connectors as shown.

Applies to cars with internal amplifier

1. 1. Connect cable harness A  to the cable from the control module.

Applies to cars with external amplifier

1. 1. Connect cable harness B  to the cable from the control module.

Applies to all models

1. 2. Connect the microphone
2. 3. Connect the control panel

• Take one of the cut pieces of foam tape and tape around the connectors.

• Place the connectors and the excess wiring inside the center console.
• Fold back the carpet.

• Take two large tie straps from the kit and secure the cable from the microphone on top of the collision pipe.

Applies to cars with external amplifier

• Also secure the cable harness B  , that is to be later routed back to the external amplifier.

Reinstall:

• gear lever gaiter, starting at the trailing edge.
• and slide the tunnel console forward so that the lugs secure it. At the same time align the floor carpet on the right and left-hand sides.
• the two screws at the front edge of the tunnel console.
• the panel at the parking brake.
• the two screws and the cover under the armrest.
• front storage compartment inside of the center console.
• and connect the display unit.
• the surround for the display.
