Installing The Antenna
Courtesy of VOLVO CARS OF NORTH AMERICA.
- Clean the surface where the inner base module is to be positioned using the cleaning cloth from the kit
- Wipe dry
- Remove the backing from the inner base module
- Position the inner base module horizontally in the corner of the rear windshield, as close to the horizontal and vertical shading as possible. Press the inner base module into place

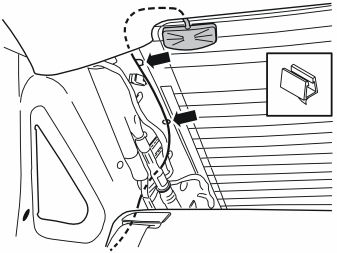

- Remove the backing from the Velcro strips. Press the Velcro strips into place approximately as shown in the illustration
- Press the antenna cable into the clamps
- Route the antenna cable inside the gas generator to the inflatable curtains and down to the parcel shelf.
Courtesy of VOLVO CARS OF NORTH AMERICA.
- Install the antenna on the external base module.
Courtesy of VOLVO CARS OF NORTH AMERICA.
- Clean the surface where the external base module is to be positioned using the cleaning cloth from the kit
- Wipe dry
- Remove the backing from the external base module. Press the external base module into place on the side window opposite the inner base module
- Press hard on points 1, 2, 3, 4 and 5, in order, for 3-4 seconds
- Ensure that the tape is sealed around the external base module. For optimum adhesion, heat the glass. Use a hair drier or similar.
