Installing The Fog Lamps

Fig 1: Identifying Ignition Switch Turned To Position 0

Courtesy of VOLVO CARS OF NORTH AMERICA.

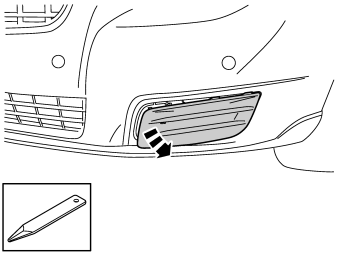

Fig 2: Removing Panel

Courtesy of VOLVO CARS OF NORTH AMERICA.

Carefully pry off the panel starting at the right-hand end. It is secured with six mounting hooks. New panel in the kit.

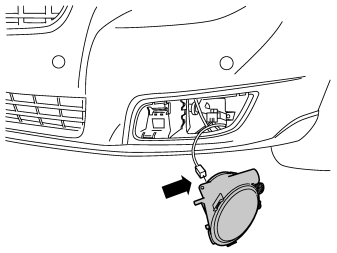

Fig 3: Identifying Connector

Courtesy of VOLVO CARS OF NORTH AMERICA.

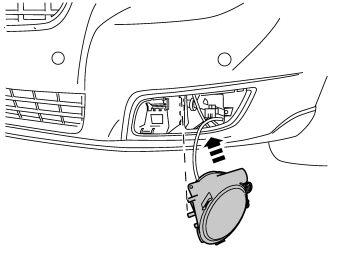

Fig 4: Installing Fog Lamp

Courtesy of VOLVO CARS OF NORTH AMERICA.

Position the fog lamp. Ensure that the two pins are inserted into the corresponding cut outs in the bumper cover.

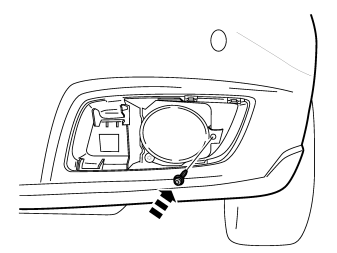

Fig 5: Locating Screw

Courtesy of VOLVO CARS OF NORTH AMERICA.
