Installing The Keypad

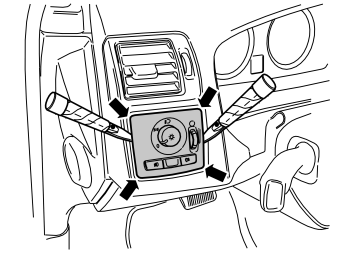

Fig 1: Removing Keypad

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the keypad for the lighting. Carefully pry off the keypad from the dashboard. Use a weatherstrip tool. The keypad is secured by two catches on either side. Do not damage the dashboard.

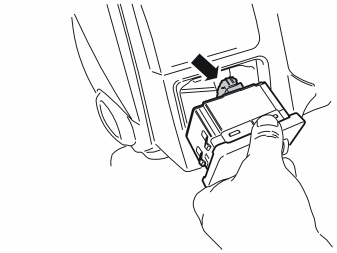

Fig 2: Locating Connector

Courtesy of VOLVO CARS OF NORTH AMERICA.

Disconnect the connector from the existing keypad. Remove the keypad. The keypad will not be used again
Connect the connector to the new keypad (from the kit)
Press the keypad into the dashboard.
