Installing Fog Lamps
Courtesy of VOLVO CARS OF NORTH AMERICA.
- Turn the ignition key to position 0
- Detach the panel at the bottom edge of the bumper cover on the right-hand side. First press down the two upper catches for the panel from the outside. Use a weatherstrip tool
- Carefully pry off the panel until the last catches release. Remove the panel. Do not damage the paintwork
- Place the panel to one side. There is a new panel in the kit.
Courtesy of VOLVO CARS OF NORTH AMERICA.
- Disconnect the pre-routed connector for the fog lamp inside the removed panel

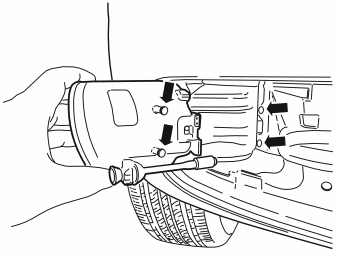

- Connect the connector to the fog lamp. Insert the fog lamp in position. Ensure that the two pins are inserted into the corresponding cut outs in the bumper cover.
Courtesy of VOLVO CARS OF NORTH AMERICA.
- Install the two screws (from the kit). Tighten the fog lamp securely
- Repeat for the fog lamp on the other side.
