Parcel Shelf: Removal

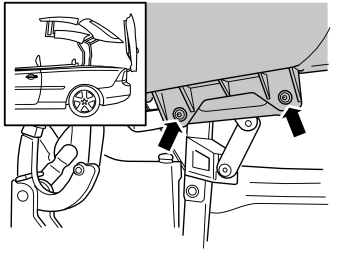

Fig 1: Locating Parcel Shelf Screws

GLL152051

Courtesy of VOLVO CARS CORPORATION

Remove the M6 screws - 2 per side.

NOTE:

Note the position of any spacers at the screw fasteners.
