Luggage Compartment Cover: Removal

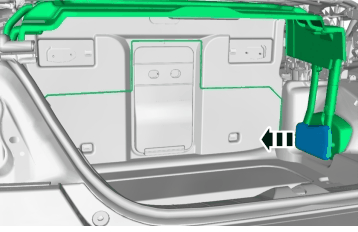

Fig 1: Detach Curtain Rod From Clip

Courtesy of VOLVO CARS CORPORATION

Detach the curtain rod from the clip.

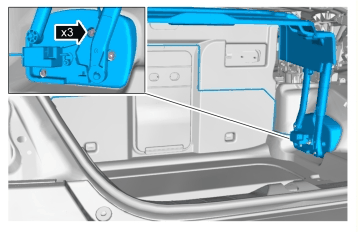

Fig 2: Remove The Cover

Courtesy of VOLVO CARS CORPORATION

Remove the cover (3 x hidden clips).

NOTE:

Applies to both sides.

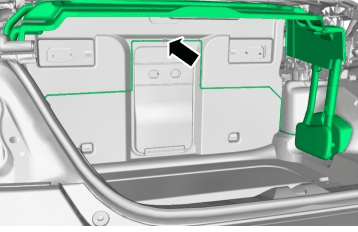

Fig 3: Remove The 3x M6 Screws

Courtesy of VOLVO CARS CORPORATION

Remove the 3 x M6 screws.

NOTE:

Applies to both sides.

Raise and angle out the load limiter from the cargo compartment.
