Removing The Speaker Grille

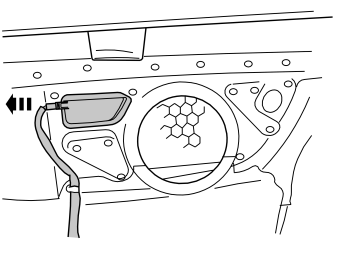

Fig 1: Identifying Speaker Connector

Courtesy of VOLVO CARS CORPORATION

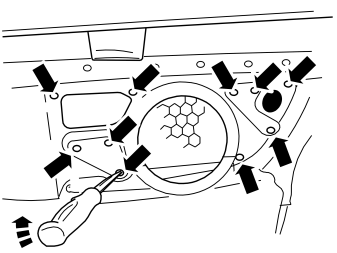

Fig 2: Identifying Speaker Grille Fasteners

Courtesy of VOLVO CARS CORPORATION

Remove:

• the side panel in the rear seat as described in, see SIDE PANEL REAR SEAT
• the lighting
• the connector
• the speaker grille (10 fasteners).

HINT: Use a knife to carefully pry away the fasteners.
