Load Limiter Rear Locking: Removal

Fig 1: View Of Load Limiter Rear Locking Screw

GLL154550

Courtesy of VOLVO CARS CORPORATION

Remove:

the rubber strip
the M6 screw.

Move the rear locking upwards.

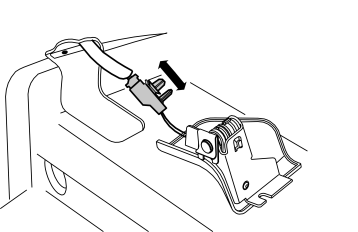

Fig 2: Remove The Connector

GLL154551

Courtesy of VOLVO CARS CORPORATION

Remove the connector.

Fig 3: View Of Shaft And Lock Washer

GLL154552

Courtesy of VOLVO CARS CORPORATION

Remove:

the locking washer
1 screw.

Pull out the shaft.

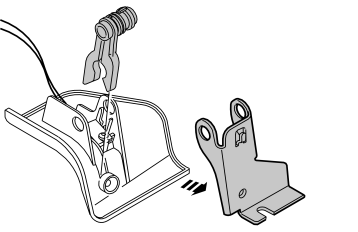

Fig 4: Identifying Mounting Bracket And Cradle

GLL154553

Courtesy of VOLVO CARS CORPORATION

Remove:

the mounting bracket
the cradle
the spring
the ring.

Fig 5: Locating Screw

GLL154554

Courtesy of VOLVO CARS CORPORATION

Remove 1 screw.
