Tilt Mechanism Front Seat Backrest: Removal

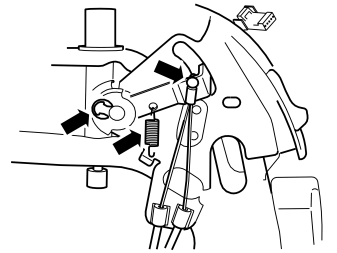

Fig 1: Identifying Retaining Clip

Courtesy of VOLVO CARS CORPORATION

Remove:

• the backrest electric motor as described in, see ELECTRIC MOTOR, BACKREST RAKE
• the retaining clip
• the spring

Angle out the handle and unhook the lock cable.

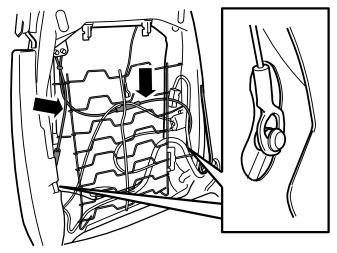

Fig 2: View Of Cable Tie From The Seat Frame

Courtesy of VOLVO CARS CORPORATION

Follow the cables. Detach the clips and cable tie from the seat frame.

Unhook the 2 cables from the folding mechanism.
