Remove / Install

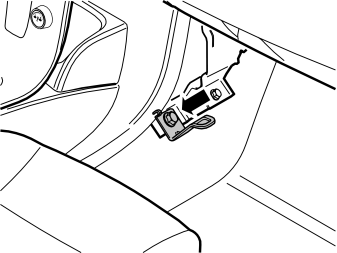

Fig 1: Identifying RH Tunnel Console Floor Carpet

Courtesy of VOLVO CARS CORPORATION

Fig 2: View Of Center Console Mounting Screw

Courtesy of VOLVO CARS CORPORATION

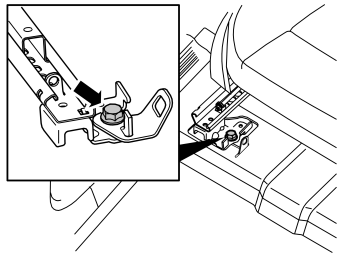

Fig 3: Identifying LH Mounting Screw

Courtesy of VOLVO CARS CORPORATION

Install the left-hand mounting with the existing screw. Torque tighten the screw to 24 Nm (18 lbf. ft.) .

Fig 4: Identifying Floor Carpet Mounting Eyelet Marking

Courtesy of VOLVO CARS CORPORATION

Fig 5: View Of Floor Carpet Mounting Eyelet

Courtesy of VOLVO CARS CORPORATION

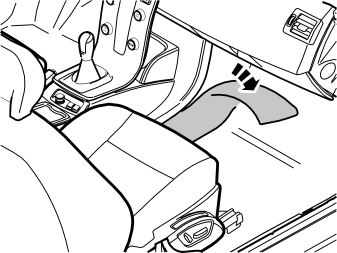

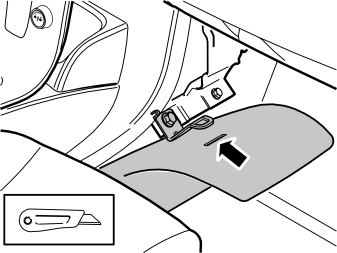

Make a small cut in the floor carpet opposite the marking, equally as wide as the mounting eyelet.

Fig 6: View Of Refit Carpet Over Mounting Eyelet

Courtesy of VOLVO CARS CORPORATION

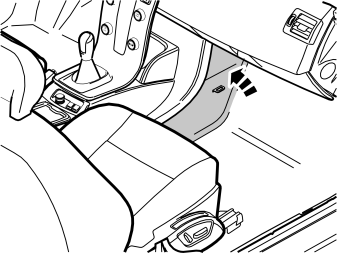

Fold the carpet back over the mounting eyelet and refit it at the center console.

Fig 7: Identifying Cover Panel

Courtesy of VOLVO CARS CORPORATION

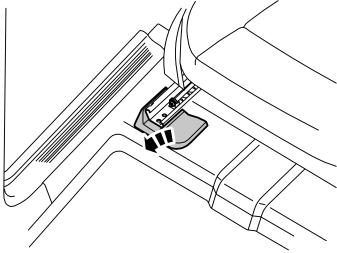

Remove the cover panel over the front right-hand mounting by carefully prizing it off with a weatherstrip tool.

Fig 8: Identifying Mounting Screw

Courtesy of VOLVO CARS CORPORATION

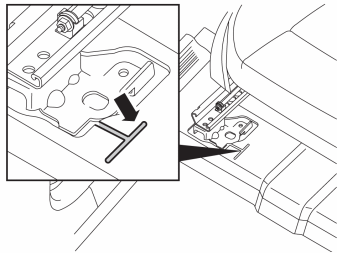

Make a small T-shape cut in the floor carpet, equally as wide as the mounting eyelet on the mounting in the position as illustrated. Use the mounting to mark where the small cut should be located.

Fig 9: Identifying T-Shape Cut In Carpet

Courtesy of VOLVO CARS CORPORATION

Fig 10: View Of Mounting Eyelet

Courtesy of VOLVO CARS CORPORATION

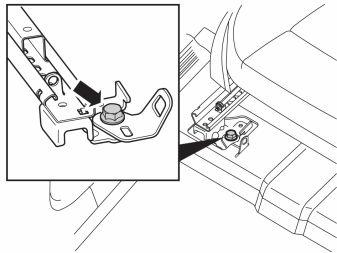

Insert the mounting eyelet through the small cut in the floor carpet. Position the mounting over the hole and the guide pin in the seat rail with the washer on top.

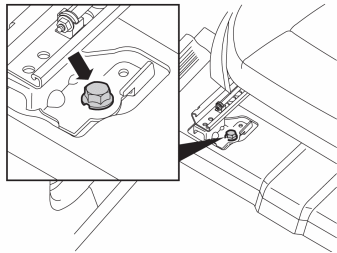

Reinstall the screw. Torque tighten the screw to 50 Nm (37 lbf. ft.) .
Reinstall the cover panel over the seat mounting.

Fig 11: View Of Mounting Eyelet

Courtesy of VOLVO CARS CORPORATION
