Remove / Install

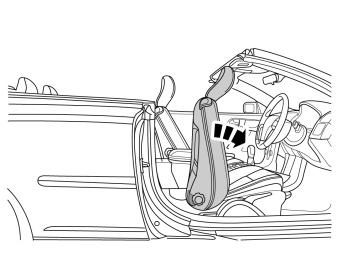

Fig 1: Identifying Passenger Seat Backrest Forward

Courtesy of VOLVO CARS CORPORATION

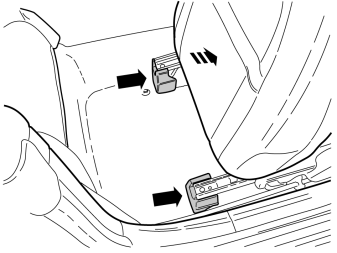

Fig 2: View Of Seat Runners

Courtesy of VOLVO CARS CORPORATION

Slide the front seat as far forward as possible so that the seat wings are visible.

Fig 3: View Of Seat Runner Screw

Courtesy of VOLVO CARS CORPORATION

Remove the seat wings on the left side by using a screwdriver to pry between the wings and the seat rail while guiding the wings rearward. Do the same on the right side of the seat.

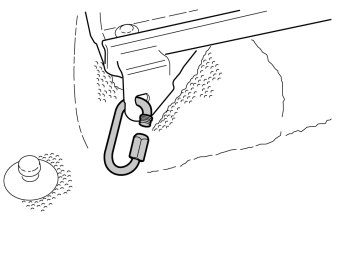

Fig 4: View Of Eyelet Through The Square Hole

Courtesy of VOLVO CARS CORPORATION

Fit the eyelet through the square hole on the left seat wing. Do the same on the right side.

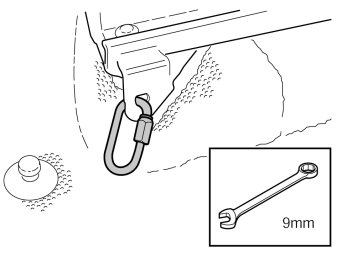

Fig 5: Tighten Nut Jacket On Eyelet

Courtesy of VOLVO CARS CORPORATION

Tighten the nut jacket on the eyelet on the left and right side.
NOTE:
Store the removed seat wings in a suitable spot so that they can be reinstalled if the child seat eyelets are removed.
