Armrest, Rear Seat: Remove

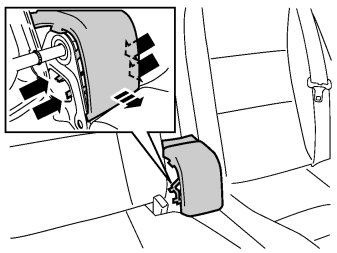

Fig 1: Identifying Backrest Panel

Courtesy of VOLVO CARS CORPORATION

Remove the panel between the backrests in the rear seat by inserting your hands between the padding and brackets, pressing the four catches and then pulling out the panel.
Place the panel to one side, it shall not be used again.

Fig 2: Identifying Rear Seat Cushion

Courtesy of VOLVO CARS CORPORATION

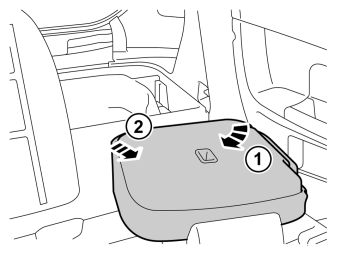

Pull off the seat cushion, first at the rear edge where it is secured by one holder. Then at the front edge where it is secured by two holders.
Remove the seat cushion.

Fig 3: View Of Panel For The Backrest's Left-Hand Mounting

Courtesy of VOLVO CARS CORPORATION

Fig 4: Identifying Armrest Mounting

Courtesy of VOLVO CARS CORPORATION

Fig 5: Removing Backrest

Courtesy of VOLVO CARS CORPORATION
