Armrest, Rear Seat: Install

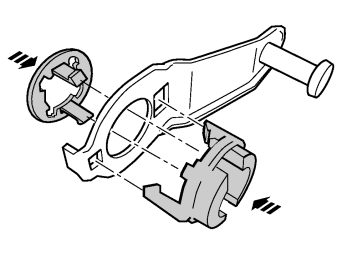

Fig 1: View Of Control Arm Lug Components

Courtesy of VOLVO CARS CORPORATION

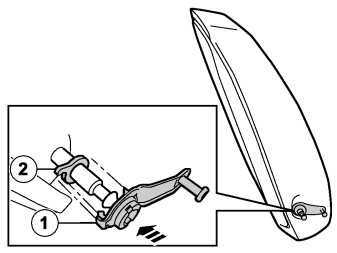

Fig 2: Identifying Control Arm Lug

Courtesy of VOLVO CARS CORPORATION

Install the new bearing on the backrest's shaft journal. Ensure that the control arm's lug (1) locates in the underneath of the shaft journal's hook (2).
Press the control arm on the shaft journal until the hooks engage.

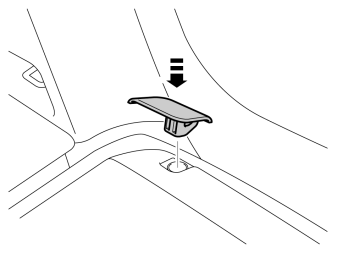

Fig 3: Reinstall The Backrest

Courtesy of VOLVO CARS CORPORATION

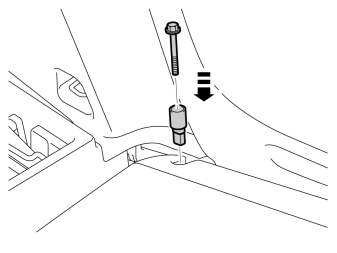

Fig 4: View Of Screw And Lock Pin

Courtesy of VOLVO CARS CORPORATION

Secure the backrest in the left-hand mounting with the screw and lock pin.
Tighten the backrest and check that it is securely in its mountings. Torque tighten the screw to 15 Nm (11 lbf. ft.) .

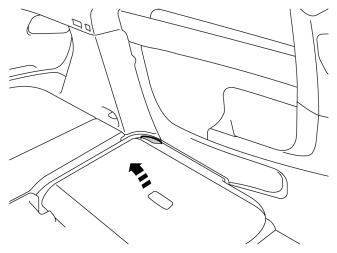

Fig 5: Installing Backrest Cover

Courtesy of VOLVO CARS CORPORATION

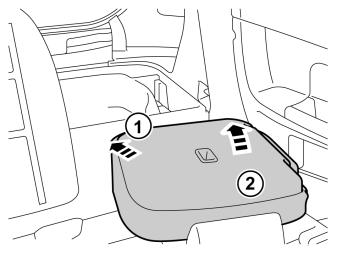

Fig 6: Repositioning Backseat

Courtesy of VOLVO CARS CORPORATION

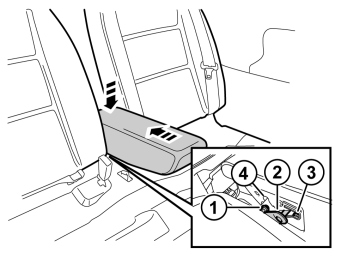

Fig 7: Identifying Central Arm Rest

Courtesy of VOLVO CARS CORPORATION

Install the central armrest by grasping each end, moving it up towards the backrest lugs (1) and aligning the holders (2) in the backrest's sides in the central armrest's cut-out (3).
Then press the central armrest down at the rear edge so that the lugs (1) engage in the cut-out (4). A click should be heard when the central armrest is secured.

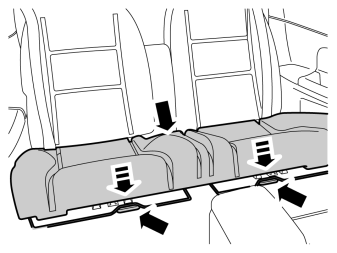

Fig 8: Installing Rear Seat Cushion
