Coolant Heater, Auxiliary Belt TENSIONER - Removal & Installation
>>
Engine
>>
Auxiliaries belt / belt tensioner, replacing (D5252T)
>>
Replacing the belt tensioner
Replacing the belt tensioner

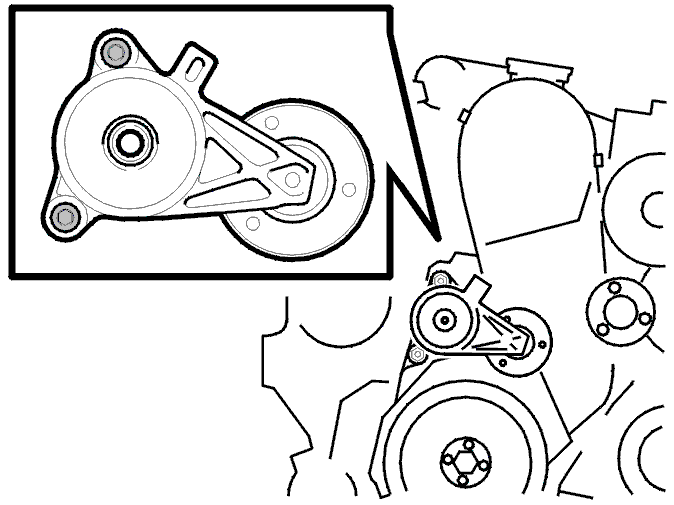

Fig 1: Identifying Belt Tensioner
Courtesy of VOLVO CARS OF NORTH AMERICA.
Unscrew both the mounting screws for the belt tensioner from the auxiliaries belt bracket
Remove the tensioner
Install the new belt tensioner. Tighten to
40 Nm
.
