Cargo Compartment, Preparations

APPLIES TO THE V50

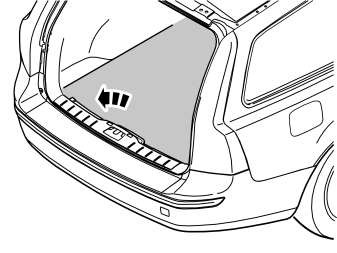

Fig 1: Identifying Rear Cargo Compartment Carpet

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Remove the cargo compartment carpet.

Fig 2: Identifying Cover Panel Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Remove the screw.
• Pull the cover panel upwards so that the four clips on the inside release. Remove the panel.

Fig 3: Identifying Anchorage Eyelet Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Fold out the anchorage eyelets.
• Insert a scriber with an angled tip into the holes in the top of the covers (1). Turn the scriber so that the tip engages the reverse of the cover. Pull the covers off.
• Remove the screws from the anchorage eyelets.
• Remove the screw (2).
• Pull off the side panel at the top so that the two clips at the rear/bottom of the side window and the clip at the bottom of the D-pillar release.
• Disconnect the connector for the 12V socket, if present.
• Lift out the side panel.
