Remove the brake pipe from the car

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

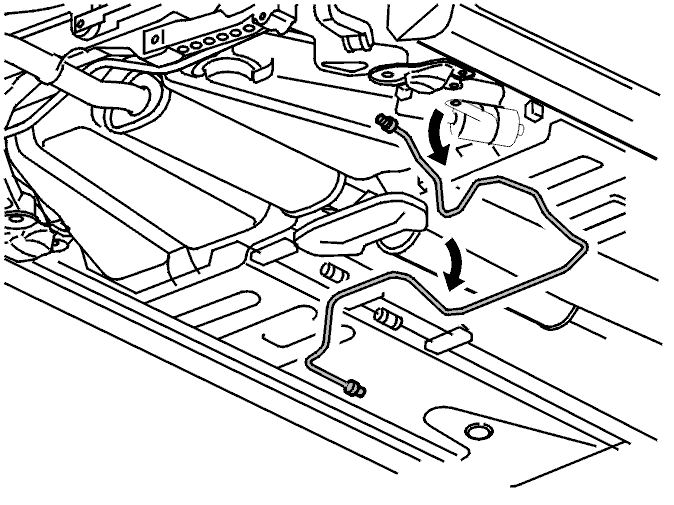

Fig 1: Identifying Brake Pipe From Vehicle
GLL104475Courtesy of VOLVO CARS OF NORTH AMERICA.

Turn the brake pipe to the right under the rubber parking brake bellows and down between the bodywork and the fuel lines.
