Remove the bracket and the brake pipe

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

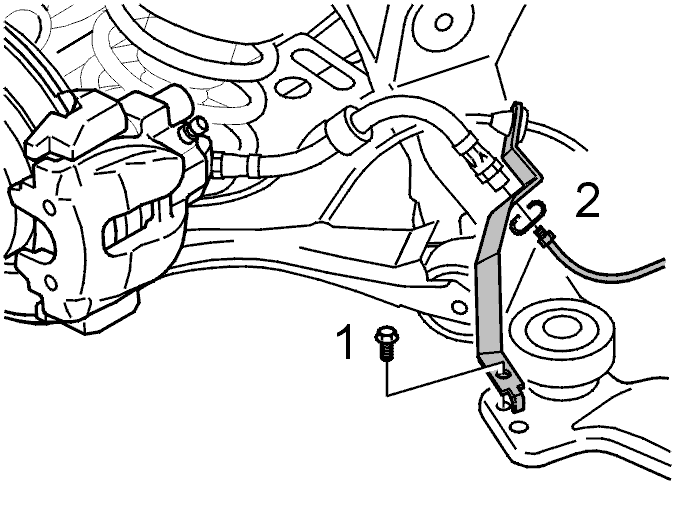

Fig 1: Identifying Bracket And Brake Pipe
GLL104474Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the screw (1) from the bracket holding the brake pipe and brake hose.

Disassemble the brake pipe (2) and brake hose at the bracket.
