Replacing Front Engine Pad
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

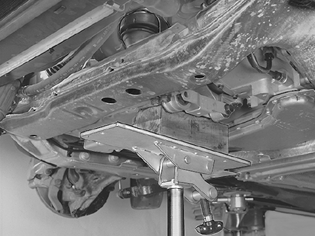

Position a mobile jack with universal plate 9995972 under oil pan long, as far to the left as possible.
NOTE:
Dry off the oil pan and the universal plate.
Check that the plate does not catch in the sub-frame.
Carefully lift up the engine so that the engine pad can be replaced.
Install a new screw in the engine pad lower mounting. Do not tighten yet.
Carefully lower the engine.
NOTE:
Ensure that engine pad locating pin locates correctly.
Remove the mobile jack.
