Checking the oil quality

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Ignition OFF

Courtesy of VOLVO CARS OF NORTH AMERICA.

Ignition off.
Check the oil. Take a sample with the dipstick.

Options:
1. The oil is OK.
  Refer to Checking the oil level
2. The oil is discolored or smells burnt.
  Refer to Changing oil
3. The oil contains water (the oil is colored gray)
  Refer to Replacing a component

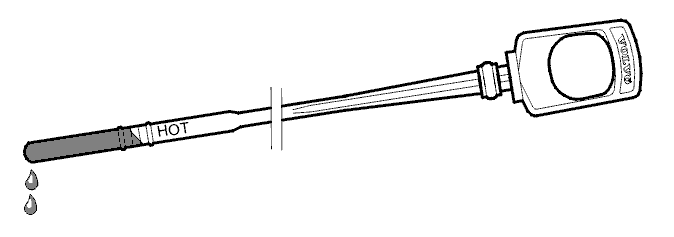

Fig 2: Identifying Oil Dipstick
Courtesy of VOLVO CARS OF NORTH AMERICA.
